BYD Dolphin 12V Battery Flat: Jump Start the Right Way

 Before reaching for cables, try the manual's wake-up trick: hold the smart key close to the driver's door and double-press the door handle microswitch, since a long-parked Dolphin's 12V battery may simply be dormant. If a jump is truly needed, the points are under the bonnet, positive inside the under-hood power distribution box and negative on the hood latch, and never use the Dolphin to jump another car.

Dolphin 12V Battery at a Glance

Measurement	Detail
Battery type	Iron starter battery with an intelligent control module
Battery location	Under the rear seat, access cover near the middle passenger's feet
Jump point, positive	Inside the under-hood power distribution box
Jump point, negative	The hood latch
Try first	Key close to the driver's door, double-press the microswitch
Hard rule	Never jump start another vehicle from the Dolphin

Why an EV Can Still Strand You, and Why It Rarely Does

Every function that unlocks, boots, and wakes the Dolphin runs on the small 12V battery, so a flat one leaves the whole car dark even with a healthy drive battery underneath. The reassuring part is the manual's smart protection: an intelligent charging function tops the 12V up from the high-voltage pack automatically whenever three conditions are met, the ignition is off, high-voltage discharging is allowed, and the 12V level has dropped below its design value.

That self-care, plus the battery's own intelligent control module, is why Dolphin 12V flats are rare. Long-term parking, an ageing battery, or a fault can still get past it, which is where the rest of this guide comes in.

Try This First: The Wake-Up Trick

After long-term parking, the 12V battery can enter a dormant state, and the symptoms mimic a flat: the smart key cannot locate or unlock the car. The manual's fix takes ten seconds.

1. Hold the smart key close to the driver's door
2. Double-press the microswitch on the door handle
3. If it unlocks, you are done: The vehicle wakes and can be used as normal

If the double-press does nothing, the manual says the battery may be genuinely exhausted, and that is when jump starting enters the picture.

Dead Fob or Dead 12V? A 30-Second Diagnosis

"The car will not turn on" has two lookalike causes. If the car unlocks and lights up but will not start with the button, suspect the key fob's coin cell, which has its own no-power-mode workaround in our Dolphin key fob battery guide. If the car is completely dark and deaf to the key, it is the 12V story on this page.

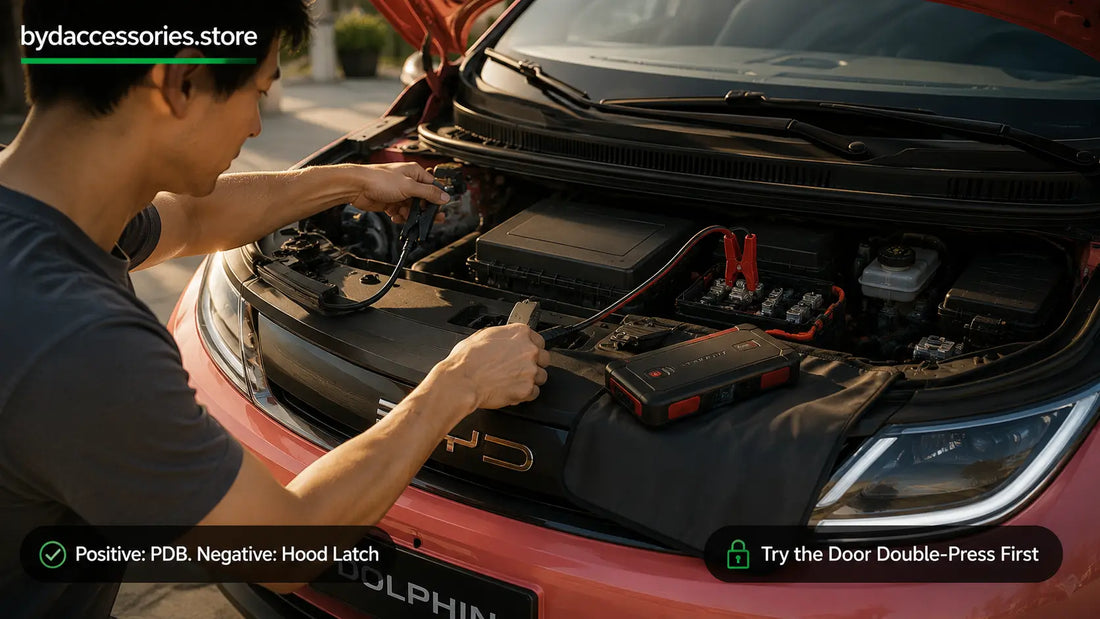

The Jump Start Sequence, the Right Way

The manual designates the two connection points and attaches serious cautions, so respect both. It recommends professional guidance because space inside the under-hood PDB is limited and circuit risks are present, and it warns the battery can produce hydrogen gas, so no sparks, smoking, or flames.

1. Power everything off on both the Dolphin and the booster source, a 12V supply with proper cables
2. Connect positive to the Dolphin first: The positive jump terminal sits inside the under-hood power distribution box
3. Connect positive at the booster
4. Connect negative at the booster
5. Connect negative to the hood latch last: The manual's designated negative point is the hood latch, not the battery itself
6. Wake the car, let it stabilise, then disconnect in exactly the reverse order, hood latch first, Dolphin's positive last
7. Have it checked: A battery that needed rescue deserves a dealer health check, especially given its intelligent module

Two of the manual's warnings deserve bold print. First, never jump start another vehicle from the Dolphin, as doing so can damage its low-voltage battery. Second, do not disassemble or damage this battery except in an emergency, it is a managed, intelligent unit, not a generic lead box.

The Terminal Map: Why the Points Are Not at the Battery

Here is the detail that confuses everyone: the battery itself lives under the rear seat, with its access cover near the middle passenger's feet, yet you never jump it there. The engineered jump points are under the bonnet, the positive post inside the PDB and the chassis ground at the hood latch, keeping cables away from the seat-mounted battery and its harness.

That under-hood PDB is the same box our Dolphin fuse box diagram maps fuse by fuse, at the left rear of the engine compartment, trim off and latch pressed, so one guide finds the box and the other tells you what lives inside it.

For any maintenance at the battery itself, the manual's rule is strict: remove the ground cable from the negative terminal first and reconnect it last, and wipe the battery with a cloth rather than washing it.

Prevention: Keeping the 12V Healthy

• Drive it regularly: The intelligent charging function needs the car in normal use to do its quiet work
• Long-term parking: The manual advises disconnecting the negative terminal wire if the car will sit for a long time
• The 3 to 5 year check: From that age, routine servicing should include terminal corrosion and mounting checks
• Mind the knock-on effect: An over-discharged 12V battery also blocks high-voltage charging, one of the causes in our Dolphin won't-charge diagnostic flow
• Carry a lithium jump starter pack: A compact jump starter pack for your Dolphin turns a stranding into a five-minute fix, and spares you flagging down help you must refuse anyway, since the Dolphin cannot return the favour.

Common Mistakes

• Skipping the wake-up trick: A dormant battery needs a double-press, not cables
• Hunting for jump points under the rear seat: The engineered points are under the bonnet
• Clamping negative to the battery: The manual's ground point is the hood latch
• Jumping a mate's car from the Dolphin: The manual forbids it to protect the intelligent battery
• Wrong disconnect order: Reverse of connection, always
• Ignoring the aftermath: A rescued battery warrants a dealer check, and a repeat flat means the battery, not bad luck
