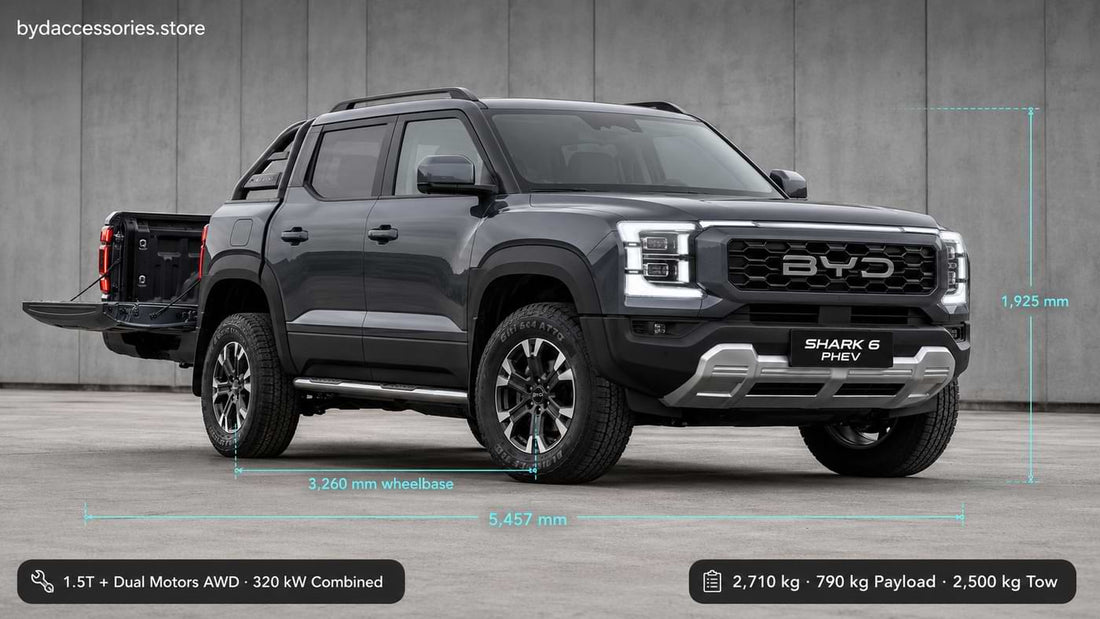

BYD Shark 6 PHEV pickup truck three-quarter front view with dimension lines showing 5457mm length, 1925mm height, and 3260mm wheelbase

BYD Shark 6 Specifications: Full Spec Sheet for All Markets

The BYD Shark 6 is a plug-in hybrid (PHEV) pickup with a 1.5L turbo petrol engine (135 kW) plus dual electric motors (front 170 kW peak, rear 150 kW peak) in an AWD layout. It carries an LFP Blade Battery providing 81-92 km of electric-only range and a combined PHEV range exceeding 840 km. It tows up to 2,500 kg braked, weighs 2,710 kg at kerb, and measures 5,457 mm long with a 3,260 mm wheelbase.

Dimensions

Measurement Specification
Length 5,457 mm
Width (excl mirrors) 1,971 mm
Height 1,925 mm
Wheelbase 3,260 mm
Front / Rear track 1,660 mm / 1,660 mm
Front overhang 927 mm
Rear overhang 1,270 mm
Approach angle 31°
Departure angle 19.3° (with trailer crossmember)

Weight and Payload

Measurement Specification
Kerb weight 2,710 kg
Front axle load (kerb) 1,475 kg
Rear axle load (kerb) 1,235 kg
GVM (max allowable total mass) 3,500 kg
Front axle load at GVM 1,595 kg
Rear axle load at GVM 1,905 kg
Payload capacity ~790 kg (GVM minus kerb)
Occupants 5

Engine

Measurement Specification
Model BYD476ZQF
Type 1.5L turbo, inline 4-cyl, direct injection, DOHC, water-cooled
Displacement 1,497 mL
Max net engine power 135 kW at 5,400 rpm
Max engine torque 260 Nm at 2,000-4,800 rpm
Emission standard Euro 5
Engine oil 0W-20, SP specification, initial fill 5.0L

Drive Motors (Dual, AWD)

Measurement Front Motor Rear Motor
Model TZ220XYV TZ200XSV
Type Permanent magnet synchronous motor (PMSM)
Rated power / speed / torque 80 kW / 5,093 rpm / 150 Nm 70 kW / 4,775 rpm / 140 Nm
Peak power / speed / torque 170 kW / 18,000 rpm / 310 Nm 150 kW / 16,000 rpm / 340 Nm
Drive type All-wheel drive (AWD)
Combined peak motor output 320 kW / 650 Nm

High-Voltage Battery

Measurement Specification
Chemistry Lithium iron phosphate (LFP) Blade Battery
Rated capacity 81.1 Ah
Electric-only range 81-92 km (variant dependent)
Combined PHEV range 840+ km
Fuel consumption (combined) 7.9 L/100 km
Battery warranty 8 years / 160,000 km
Vehicle warranty 6 years / 150,000 km

Charging

  • AC home charging: Up to 7 kW (standard household or wallbox)
  • Full AC charge time: Approximately 5-6 hours on a 7 kW wallbox
  • Standard socket (2.3 kW): Approximately 12-14 hours for a full charge
  • DC fast charging: Not available (PHEV battery size does not support DC)
  • Charge port location: Rear-left quarter panel
  • Charging connector: Type 2 (AC)

The Shark 6's petrol engine seamlessly extends range when the battery is depleted, eliminating DC charging dependency for long trips.

Performance

  • Max design speed: 160 km/h
  • Max gradeability: 60%
  • Max towing speed: 100 km/h
  • Drivetrain: PHEV AWD (1.5T engine + dual PMSM motors)

Towing and Off-Road

Measurement Specification
Max braked towing 2,500 kg
Max unbraked towing 750 kg
Max vertical load (ball joint) 250 kg
Min vertical load 4% of trailer weight or 25 kg (whichever heavier)
Trailer connector 7-pin AS4177.5
Approach angle 31°
Departure angle 19.3°
Max gradeability 60%

The Shark 6's 31° approach angle and 60% gradeability make it one of the most off-road capable PHEVs in the segment. For towing setup procedures and pre-tow checklists, we cover everything in our guide on getting your Shark 6 tray and bed ready for heavy use.

Wheels, Tyres, and Brakes

Measurement Specification
Tyre specification 265/65 R18
Tyre pressure (unloaded) Front 2.5 bar / Rear 2.5 bar
Tyre pressure (full load) Front 2.5 bar / Rear 2.9 bar
Lug nut torque 140 Nm
Front brake disc (standard / min) 34 mm / 32 mm
Rear brake disc (standard / min) 25 mm / 23 mm
Front friction plate (standard / min) 11.5 mm / 2 mm
Rear friction plate (standard / min) 12 mm / 2 mm

Safety

  • ANCAP / Euro NCAP: 5-star safety rating
  • Airbags: 6 airbags (driver, passenger, side, curtain)
  • ADAS: ACC, AEB, BSD, RCTA, RCTB, LDW, LDA, TSR, DOW
  • Traction control: ESC, TCS, ABS with EBD
  • Hill assist: HDC (Hill Descent Control), HHC (Hill Hold Control)
  • Tyre monitoring: TPMS with pressure and temperature alerts
BYD Shark 6 complete specification infographic showing dimensions with side profile, engine 135 kW, dual motors 320 kW, LFP battery, 2500 kg towing, 790 kg payload, 840 km combined range, and 5-star ANCAP rating

Common Mistakes Buyers Make

  • Confusing payload with towing. Payload is ~790 kg (cargo in the tray + passengers). Towing capacity (2,500 kg) is separate and refers to the trailer weight.
  • Ignoring GVM when loading. The Shark 6 must not exceed 3,500 kg total (vehicle + passengers + cargo). Exceeding GVM voids insurance and warranty.
  • Expecting long EV-only range. The 81-92 km electric range suits daily commuting. Long trips use the 1.5T engine in hybrid mode.
  • Assuming approach angle stays at 31° with accessories. Bull bars, nudge bars, and tow bars can reduce approach and departure angles. Check clearance after fitting.
  • Not checking brake disc thickness at service. The manual provides minimum thicknesses (front 32 mm, rear 23 mm). Below these, replacement is mandatory.
