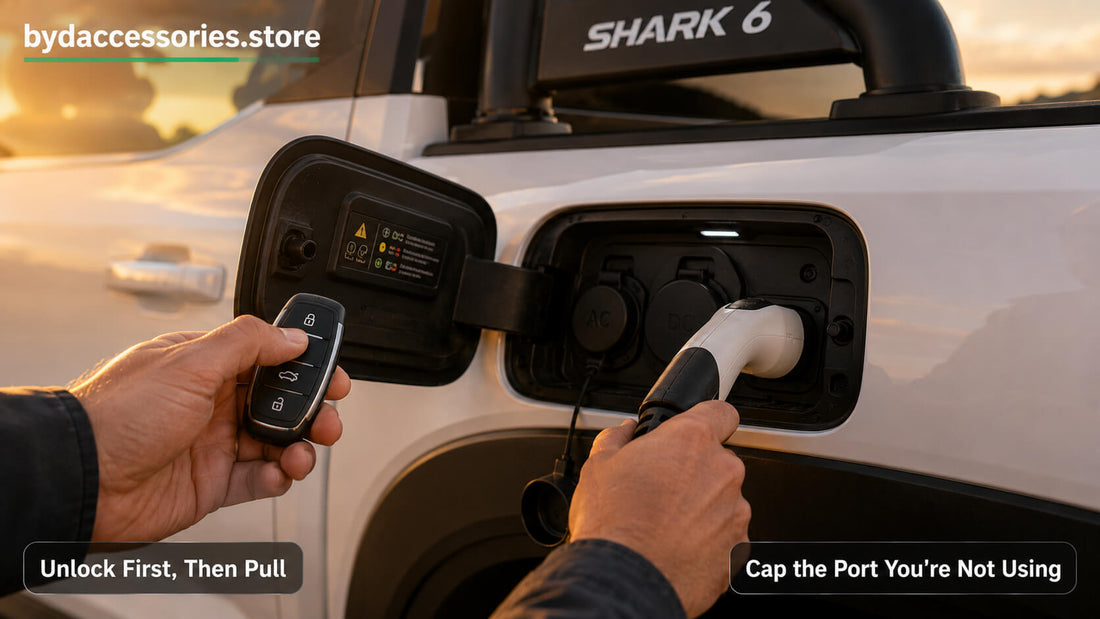

Releasing the BYD Shark 6 charging connector with the key unlock button at the open charge port

BYD Shark 6 Charge Port Guide: Doors, Caps, and the Locked-Connector Trick

The BYD Shark 6's charging etiquette comes straight from the manual: never force the port door when it is locked, keep the AC cap closed during DC charging and the DC cap closed during AC, and to release a held connector, press the unlock button on the key or the door handle microswitch with the key nearby, then pull. The full connect and disconnect choreography, and the port-care rules, are below.

The Charge Port at a Glance

Measurement Detail
Ports and caps AC and DC with their own protective caps
The cap rule AC cap closed while DC charging, and the reverse
Locked door rule Never force it open
Held connector release Key unlock button or door handle microswitch, then pull
Grid outage behaviour BYD equipment restarts automatically when power returns

Opening Up: The Door and Cap Rules

The manual's first commandment is restraint: do not force the charge port door open when it is locked, unlock first and then open. Behind the door, check before every session that the port and the connector are free of foreign objects, water, and any rust or corrosion on the metal terminals, and that the connector's own protective cap is neither loose nor deformed, because the manual's instruction in any of those cases is simple: do not charge.

Then the rule unique to a dual-port vehicle: close the AC charge port cap before DC charging, and the DC cap before AC charging. The idle port's cap is its only weather seal while its neighbour works, so the habit protects the pins you are not using.

Connecting, the Manual's Way

  1. Unlock, then open the port door and the relevant cap
  2. Inspect both faces: clean, dry, undamaged, nothing between connector head and socket
  3. For Mode 2 home charging, wall end first: plug into the household socket and watch the cable's power indicator turn solid red
  4. Align and push the connector firmly home until properly connected
  5. Walk away informed: the cluster displays the estimated time to full, which drifts with temperature and state of charge

Disconnecting: The Locked-Connector Trick

This is the step that catches new owners. The Shark 6's electric lock can hold the connector in the port, so the manual's sequence is: stop the charge first, make sure the port is unlocked, then hold the connector, press and hold its release button where fitted, and pull. If the immobiliser has the connector held, press the unlock button on the key, or press the door handle microswitch with the key nearby, and then pull it out. Prefer the charger's own early-stop control over yanking mid-session, the manual asks, and always unplug and close the door before driving, since the ute will drive off with a connector attached and damage both ends.

Mid-Session Behaviour That Is Normal

  • Power fluctuation on the cluster: Battery heating and cooling borrow power, and fans and compressor noise under the bonnet are the thermal system working
  • A slow finish: Battery equalisation near full extends the session for pack health
  • An outage that fixes itself: After a short grid failure, BYD charging equipment resumes automatically without replugging
  • Cabin comfort allowed: The A/C can run while charging, at some cost to charging power, though the manual recommends nobody stay in the vehicle

Who Should Not Handle Charging

Two safety lines from the manual deserve their own paragraph. Charging involves high-voltage current, so minors are prohibited from charging the vehicle or touching the equipment, and should be kept away during a session. And anyone using an implantable medical device such as a pacemaker or defibrillator should confirm with the device's manufacturer before charging, since the manual warns charging can affect such devices. Add the universal basics, dry hands, no exposed metal contact, no thunderstorm sessions, and the ritual stays as safe as it is simple.

Infographic of BYD Shark 6 charge port rules covering caps, connection steps, and connector release

Caring for the Port and Cable

  • Park ventilated: Grille unblocked, and in hot regions choose cool, ventilated spots, while cold regions charge best indoors
  • Uncoil the cable: A spiralled cable traps heat, so lay it loose
  • Respect the cable's limits: No forceful pulling or twisting, no impacts, no storage above 50°C, no heaters nearby
  • Skip adapters where possible: If one is unavoidable, the manual demands at least 1.5 mm² cable and compliant specifications
  • Long parks still charge: At least once a month keeps the pack healthy

The full method by charger type lives in our Shark 6 charging guide, and the timings for each in our charging time chart.
