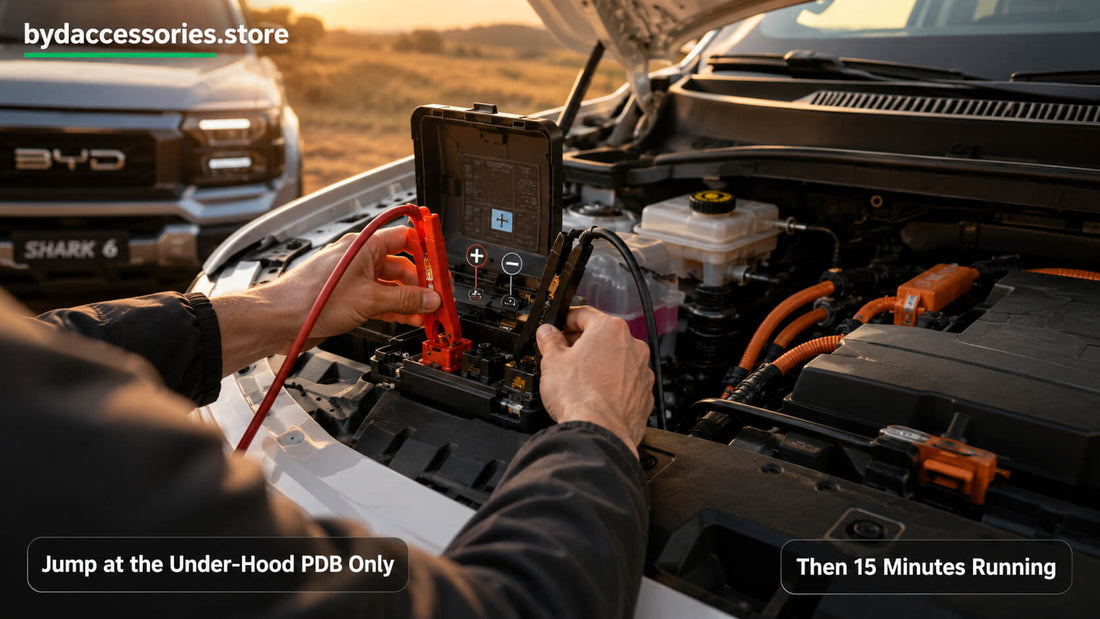

BYD Shark 6 12V jump start using red and black jump leads at the under-hood PDB terminals

BYD Shark 6 12V Battery and Jump Start: The Manual's Method

The BYD Shark 6's 12V battery lives under the rear seat and mostly looks after itself with intelligent charging from the high-voltage pack. When it goes dormant after long parking, the manual's ladder is: press the driver's door handle microswitch first, and only if that fails, open up with the mechanical key and jump start, strictly through the special interface on the under-hood PDB, then keep the ute running 15 minutes.

The 12V System at a Glance

Measurement Detail
Location Under the rear seat, below the positive fuse box
Self-care Intelligent charging from the high-voltage battery
First fix when dormant Driver's door handle microswitch
Jump points The under-hood PDB's special interface only
After a jump Keep it started for over 15 minutes

Why a PHEV Still Has a 12V Battery

Everything that greets you before the high-voltage system wakes, locks, screens, computers, lights, runs on the humble 12V battery, and the big pack cannot help until the 12V lets it. The Shark 6 sweetens the arrangement with intelligent charging: the manual notes the low-voltage battery may be charged automatically by the high-voltage battery, extending its life without you thinking about it. Which is exactly why a flat 12V feels so dramatic, the whole ute plays dead over the smallest battery aboard, and knowing its habits turns the drama into routine.

The Dormancy Ladder: Try the Handle First

After long-term parking, the 12V can enter a dormant state, and the symptom is distinctive: the smart key cannot locate or unlock the vehicle at all. The manual's first fix costs nothing:

  1. Press the microswitch on the driver's door handle. This wakes the dormant low-voltage battery, and once the ute unlocks, it can be used normally
  2. If the handle cannot wake it, open the door with the mechanical key hidden in your fob, and move to the jump start below
  3. Know the hard limit: if the 12V has failed and is completely exhausted, the manual says even an external supply cannot jump it, and that case belongs to a BYD dealer

Jump Starting, the Manual's Way

The Shark 6 is particular about where the leads go, and it is not the battery under the seat:

  1. Open the bonnet and find the under-hood PDB near the left fender, home of the special jump interface, with ① the positive terminal for jump starting and ② the negative terminal
  2. Connect a 12V supply with the two specially designed jump cables to those terminals only, positive to positive first, then negative, exactly as marked at the interface
  3. Start the vehicle, and expect the cluster's honest warning, that the low-voltage battery SOC is low and the vehicle is going to power off, if you dawdle
  4. Keep it started for over 15 minutes so the 12V charges fully, otherwise the ute simply goes dormant again
  5. Respect the caution: the manual recommends professional guidance, since the PDB's working space is tight and circuit risks are real

The under-hood PDB is the same box our Shark 6 fuse box guide maps, and the golden rules travel with it: nothing orange gets touched, and no uninsulated wire gets a finger.

BYD Shark 6 12V battery wake-up ladder showing door handle microswitch, mechanical key, PDB jump start and 15-minute recovery

The Over-Discharge Footnote for Charging

One more place the 12V shows up: the charging fault table. When the charger connects and starts yet the pack will not fill, an over-discharged 12V is a listed cause, and the manual's remedy is to connect the vehicle to another 12V battery so it can charge its own after powering on. It is the same lesson in another costume: on this ute, the smallest battery gates the biggest, so a healthy 12V is quietly part of your charging reliability too, as our won't-charge fixes guide shows in context.

Living With the 12V: Prevention

  • Drive it occasionally: A run every week or two keeps both batteries topped, long parks are what invite dormancy, and the manual's monthly charge habit for the big pack keeps the whole system exercised
  • Mind engine-off accessories: The 12V outlet's own caution applies, long sessions without the powertrain running drain exactly this battery
  • Watch for the cluster's hints: Low-voltage warnings deserve a same-week response, with our warning lights guide as the translator
  • Let the service check it: The annual visit inspects the low-voltage system's connections along with everything else

Common Mistakes

  • Skipping the handle microswitch: The free fix comes before the jumper leads
  • Hunting for terminals under the rear seat: Jumping happens at the under-hood PDB's special interface only
  • Switching off after two minutes: The 15-minute rule is what stops the repeat performance
  • Ignoring the power-off warning: It means charge now, not later
  • Forcing a completely dead battery: The manual routes that case to the dealer
  • Treating the bay casually: Tight space, live circuits, and orange cables all counsel care
