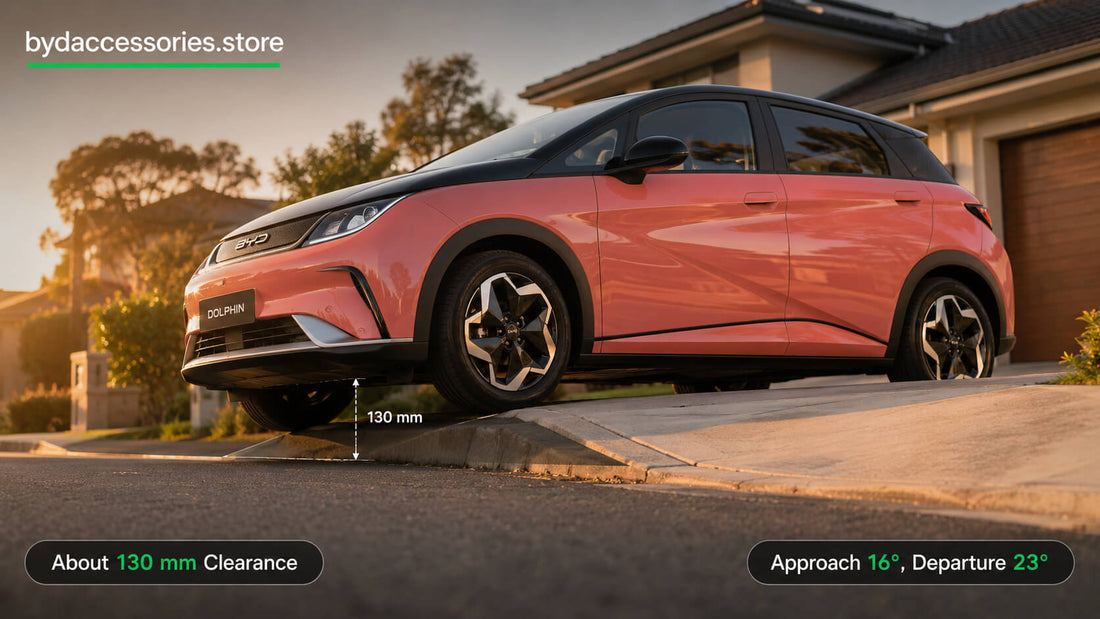

Low angle view of a BYD Dolphin crossing a steep driveway transition, showing its ground clearance

BYD Dolphin Ground Clearance, Approach and Departure Angles

The BYD Dolphin has an unladen ground clearance of about 130 mm, an approach angle of 16 degrees, and a departure angle of 23 degrees. The angles and overhangs come straight from the owner's manual, while the clearance figure is from Australian market specifications. In practice, it is a low hatchback: take steep driveways and large speed bumps slowly, because the front lip is the part that scrapes first.

BYD Dolphin Clearance and Angles at a Glance

Measurement Figure Source
Ground clearance (unladen) About 130 mm Market specification
Approach angle 16 degrees Owner's manual
Departure angle 23 degrees Owner's manual
Front overhang 830 mm Owner's manual
Rear overhang 760 mm Owner's manual
Max gradeability 30 percent Owner's manual

What These Numbers Actually Mean

These three measurements together describe how the Dolphin copes with slopes, bumps, and transitions. Here is each in plain terms.

  • Ground clearance: The gap between the ground and the lowest point of the car, about 130 mm with nobody aboard
  • Approach angle: The steepest ramp the front can meet without the bumper or lip touching, 16 degrees
  • Departure angle: The same for the rear as the car leaves a slope, 23 degrees
  • Overhangs: How far the body extends beyond each axle, 830 mm at the front and 760 mm at the rear, which is what creates the angles

The Geometry: Why the Front Scrapes First

Here is the insight most guides never explain. Picture a straight line drawn from the bottom of the front tyre to the lowest point of the front bumper. The angle that line makes with the road is the approach angle.

The Dolphin's front overhang is longer than its rear, 830 mm against 760 mm, and the front sits low for aerodynamics. A longer, lower nose means a shallower line, which is why the approach angle of 16 degrees is tighter than the departure angle of 23 degrees.

The practical takeaway is simple: on any steep transition, the front lip reaches the trouble first. If you protect the nose, the rear will almost always follow through cleanly.

Practical Scenarios

Numbers become useful when you map them to everyday obstacles. Here is how the Dolphin handles the common ones.

Speed Bumps

  • Standard road humps are no problem at sensible speeds
  • For tall, sharp bumps, slow right down and cross squarely so both front wheels rise together
  • Avoid clipping bumps at speed, which compresses the suspension and reduces your effective clearance

Steep Driveways

  • The classic scrape spot is the transition where a steep driveway meets the road
  • Crawl through the transition and take it at a slight diagonal, so one front corner crosses at a time
  • If a driveway looks severe, the angled crawl is the difference between clearing and scraping

Kerbs and Wheel Stops

  • Remember the nose extends 830 mm beyond the front wheels
  • When parking against a high kerb or wheel stop, stop before the wheels touch to keep the bumper clear
  • Never mount kerbs, which risks both the lip and the underside

Car Park Ramps

  • Multi-storey ramps are usually fine, but slow for the sharp crest and dip at each end
  • The transition points, not the slope itself, are where low cars touch

Unsealed Roads

  • At about 130 mm, the Dolphin is a road car, happy on smooth gravel taken gently
  • Rutted tracks, deep potholes, and rocky surfaces are not its territory, so pick your line and pace with care

Loaded Versus Unladen

One detail worth knowing: the 130 mm figure is unladen, measured with the car empty. Add passengers and luggage and the suspension settles, trimming your real-world clearance.

So a fully loaded Dolphin on a steep driveway deserves extra caution. The approach that cleared easily when you were alone may kiss the ground with five aboard and a full boot.

Protecting the Underside

A few habits keep the Dolphin's nose and underside unmarked for years.

  • Slow is smooth: Speed compresses the suspension exactly when you need clearance most
  • Angle the severe stuff: A slight diagonal across sharp transitions lifts one corner at a time
  • Learn your regular routes: Note the driveways and bumps that need care and treat them consistently
  • Fit mud flaps: Quality mud flaps shield the lower panels behind the wheels from stone chips and spray on rougher roads

For the Dolphin's full size picture, including why it fits garages so easily, see our guide to the Dolphin's dimensions and garage fit, which pairs naturally with this one.

Infographic diagram of BYD Dolphin ground clearance, approach and departure angles with practical scenarios

Common Mistakes

  • Taking steep driveways at normal speed: Crawl the transition, ideally at a slight angle
  • Judging by the wheels, not the nose: The front extends 830 mm beyond the axle
  • Forgetting load lowers the car: Clearance shrinks with passengers and cargo aboard
  • Hitting speed bumps fast: Compression at speed is how low cars scrape on bumps they would otherwise clear
  • Treating it like an SUV on gravel: At about 130 mm, rough tracks are not its territory
  • Pulling hard against wheel stops: Stop early so the low bumper stays clear
