BYD Blade Battery vs Tesla 4680: Which EV Battery Technology Wins?
The BYD Blade Battery uses LFP chemistry in a flat prismatic design, prioritising safety (passes nail-penetration without fire), longevity (3,000+ cycles), and cost efficiency at 160 Wh/kg. The Tesla 4680 uses NCM811 chemistry in a cylindrical tabless design, prioritising energy density (241 Wh/kg) and performance. The Blade lasts longer and costs less. The 4680 stores more energy per kg and delivers more range. Neither is universally "better." Your priority determines the winner.
Chemistry 101: LFP vs NCM Explained
LFP (lithium iron phosphate) uses iron as its cathode material. It contains zero cobalt, zero nickel, and runs at lower internal temperatures. This makes it inherently safer and cheaper to produce.
NCM811 (nickel-cobalt-manganese, 80:10:10 ratio) uses 81.6% nickel in its cathode. Higher nickel content delivers more energy per kg but increases thermal sensitivity and requires more sophisticated cooling. Tesla also uses NCA (nickel-cobalt-aluminium) in some 4680 variants for the Cybertruck and Semi. For a deep dive into BYD's chemistry, Blade Battery technology guide.

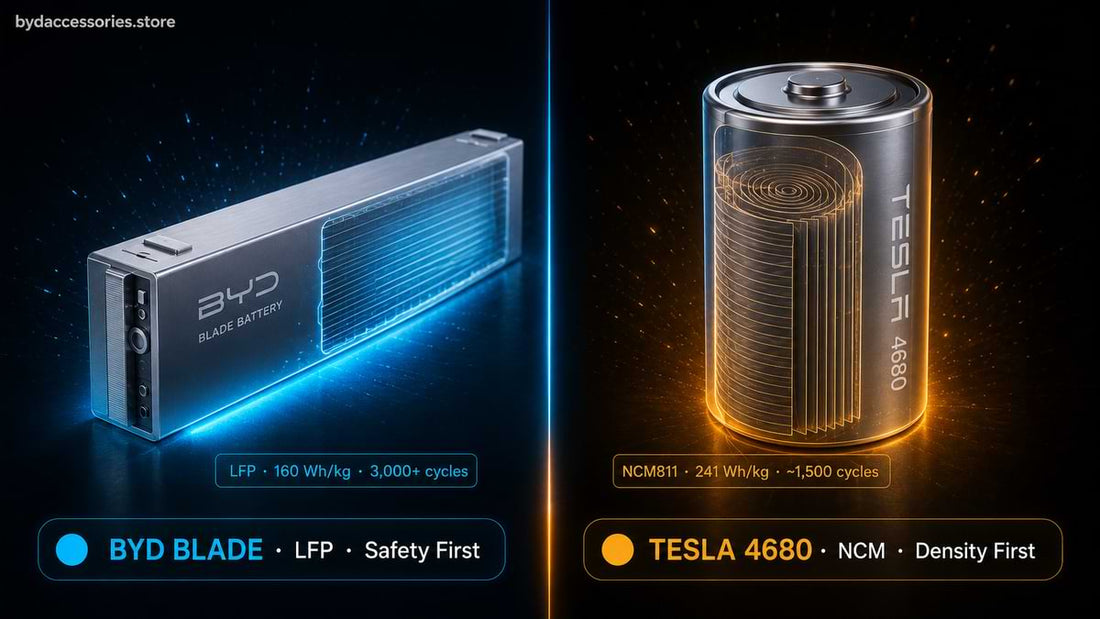

Cell Design: Prismatic Blade vs Cylindrical 4680
The two batteries look completely different. BYD's Blade cells are flat, elongated prismatic units (roughly 960 mm long, 13.5 mm thick) arranged like blades across the vehicle floor. Tesla's 4680 cells are cylindrical (46 mm diameter, 80 mm height) packed in arrays of hundreds.
- BYD Blade: Stacked electrodes, hybrid laser and ultrasonic welding, Cell-to-Pack (CTP) and Cell-to-Body (CTB) structural integration
- Tesla 4680: Jelly-roll electrode configuration, tabless design with laser-welded current collectors, structural battery pack
- Key difference: BYD's blade shape spans the full width of the car, acting as a structural honeycomb. Tesla's cylindrical cells pack into modules like a grid of cans.
Energy Density: Head-to-Head
| Measurement | BYD Blade (Gen 1 LFP) | BYD Blade (Gen 2 LMFP) | Tesla 4680 (NCM811) |
|---|---|---|---|
| Gravimetric (Wh/kg) | 160 | 190-210 | 241 |
| Volumetric (Wh/L) | 355 | ~450 (est) | 643 |
| Cell capacity | ~138 Ah | TBC | ~26.5 Ah |
| Heat generation | Baseline | Baseline | 2.3x more per volume |
| Energy loss per volume | Baseline | Baseline | 2x higher at same C-rate |
A peer-reviewed teardown study published in Cell Reports Physical Science by Fraunhofer IKTS and RWTH Aachen confirmed these figures. The Tesla 4680 stores 50% more energy per kg but generates 2.3x more heat per volume, requiring more aggressive cooling.
Safety: Nail Penetration and Thermal Runaway
This is the BYD Blade Battery's signature advantage. When a steel nail is driven through a fully charged Blade cell, it produces no fire, no smoke, and surface temperature stays under 60°C. The same test on an NCM cell causes violent thermal runaway with fire and temperatures exceeding 500°C.
- BYD Blade Gen 1: Passes nail-penetration cleanly
- BYD Blade Gen 2: Passes nail-penetration after 500+ fast-charge cycles during active charging
- Tesla 4680: No public nail-penetration results. Tesla relies on pack-level thermal barriers, venting systems, and cell-to-cell propagation prevention
- Thermal runaway risk: LFP is inherently more stable. NCM requires active cooling to prevent cascading cell failure.
Cycle Life: Longevity Compared
| Measurement | BYD Blade (LFP/LMFP) | Tesla 4680 (NCM811) |
|---|---|---|
| Rated cycle life | 3,000+ full cycles | ~1,500 cycles (estimated) |
| Expected vehicle lifespan | 8-12+ years | 8-10 years |
| Projected km | 300,000-500,000+ km | 200,000-350,000 km |
| Daily 100% charging | Safe and recommended periodically | Degrades faster above 80-90% SOC |
| Warranty | 8 years / 160,000 km | 8 years / 160,000-192,000 km |
The Blade Battery's LFP chemistry tolerates daily full charges without meaningful degradation acceleration. NCM cells degrade faster when consistently charged above 80-90%, which is why Tesla recommends limiting daily charge for NMC packs. For real-world degradation data on BYD, Atto 3 battery lifespan and replacement cost guide.
Thermal Management
Both manufacturers use liquid cooling systems, but the engineering challenge differs significantly due to heat output.
- BYD Blade: Flat prismatic cells offer large surface area for cooling contact. The CTB design integrates cooling channels directly into the vehicle floor. Lower heat generation means simpler thermal management.
- Tesla 4680: Tabless design reduces internal resistance and heat at the contact points. However, 2.3x higher volumetric heat generation requires more aggressive cooling loops, thicker thermal barriers between cells, and active venting systems.
Cost per kWh: Manufacturing Difference
- BYD Blade (LFP): Estimated US$55-65 per kWh at pack level. No cobalt or nickel dependency. Iron and phosphate are abundant and cheap.
- Tesla 4680 (NCM): Estimated US$80-100 per kWh at pack level (targeting sub-US$70 with dry electrode at scale). Nickel and cobalt prices create supply chain volatility.
- Price gap: BYD's LFP chemistry costs roughly 25-35% less per kWh to manufacture
Tesla's dry electrode technology (used on the 4680 anode) aims to close this gap by eliminating solvent-based coating, reducing factory footprint, and cutting energy consumption during production. As of early 2026, dry cathode production is still scaling.
Real-World Impact on Range and Charging
| Measurement | BYD Blade (Gen 1) | BYD Blade (Gen 2) | Tesla 4680 |
|---|---|---|---|
| Typical vehicle range | 400-570 km WLTP | Up to 1,036 km CLTC | 450-600 km WLTP |
| DC peak charging | Up to 150 kW | Up to 1,500 kW (Flash) | Up to 250 kW |
| Fast charge time | 10-80% in ~32 min | 10-97% in 9 min | 10-80% in ~25 min |
Tesla's 4680 delivers more range from a smaller, lighter pack thanks to higher energy density. BYD's Gen 2 Blade closes the range gap while adding ultra-fast Flash Charging that far exceeds Tesla's current Supercharger speeds. For current charging performance on BYD models, Sealion 7 complete charging guide.
Environmental and Ethical Sourcing
- BYD Blade (LFP): Zero cobalt, zero nickel. Iron and phosphate are globally abundant with minimal supply chain ethics concerns. China dominates LFP production.
- Tesla 4680 (NCM): Contains nickel (81.6%) and cobalt. Cobalt mining, particularly in the DRC, raises well-documented ethical concerns. Tesla sources from multiple suppliers and has committed to reducing cobalt dependency.
- Tesla LFP option: Tesla also uses LFP cells (sourced from CATL) in some Model 3 and Model Y RWD variants, avoiding the cobalt issue for its entry-level cars.
Which Battery Is Better for You?
Choose BYD Blade if you:
- Prioritise safety and thermal stability
- Want to charge to 100% daily without worrying about degradation
- Value lower purchase price (LFP packs cost less)
- Plan to keep the car for 10+ years (3,000+ cycle advantage)
- Prefer cobalt-free, ethically simpler supply chain
Choose Tesla 4680 if you:
- Need maximum range from the smallest, lightest pack
- Want faster DC charging on the Supercharger network
- Prioritise performance and acceleration (lighter pack = quicker car)
- Are comfortable with 80-90% daily charge discipline for longevity
- Value Tesla's structural battery pack integration and dry electrode innovation
Common Mistakes Buyers Make
- Assuming higher energy density means "better." The 4680 stores more energy per kg, but the Blade lasts twice as many cycles and generates half the heat.
- Ignoring daily charging habits. If you charge to 100% every night, LFP handles it without degradation. NCM does not.
- Comparing Gen 1 Blade to current 4680. BYD's Gen 2 Blade (March 2026) closes the density gap to 190-210 Wh/kg while adding 9-minute Flash Charging.
- Forgetting Tesla also uses LFP. Some Tesla Model 3 and Model Y RWD variants use CATL-supplied LFP cells, not 4680.
- Treating battery chemistry as the only factor. Charging network, vehicle price, warranty, and standard features matter more for daily ownership.
