BYD Atto 3 Charger Type: Type 2, CCS2 and Home Setup

What Type of Charger Does the BYD Atto 3 Use?

The BYD Atto 3 uses two distinct charging ports, each serving a different purpose. The official Owner's Manual confirms that charging connectors conform to DIN EN 62196, the European standard that covers the Type 2 AC connector and the CCS2 DC connector.

This means the Atto 3 is fully compatible with the widest network of chargers available across Australia, New Zealand, Europe, and most Asia-Pacific markets.

• AC port (Type 2): Used for home wallbox charging, public AC charging stations, and the included Mode 2 cable with a household socket.
• DC port (CCS2): Used for public rapid charging stations. This port sits below the Type 2 port and accepts the CCS2 combined connector.

What Charging Cable Comes in the Box?

The BYD Atto 3 comes with a Mode 2 charging cable as standard. According to the owner's manual, this cable consists of four components:

• A power plug that complies with local electrical standards
• A charging connector (Type 2) that plugs into the car's AC port
• A control box that monitors the connection and manages safety
• A charging cable connecting all components

The Mode 2 cable plugs into a standard household socket at one end and the car's Type 2 port at the other. It delivers approximately 2.3 kW, which is enough for emergency or occasional charging but too slow for regular daily use.

BYD Atto 3 Charger Type Comparison Table

Measurement note: Charge times based on the BYD Atto 3 extended range battery (~72.8 kWh usable). Times are estimates. Actual results vary with temperature, SOC, and charger output capacity.

Home Charging: Setting Up Your Atto 3 at Home

Option 1 - Mode 2 Cable (Included)

Plug the included Mode 2 cable into a standard household socket. The owner's manual specifies that a dedicated line and power outlet meeting local standards must be used. Sharing the circuit with other high-draw appliances risks tripping the breaker.

This option delivers around 2.3 kW. It can take up to 30 hours for a full charge. BYD does not recommend this as a primary daily charging method.

Option 2 - 7 kW Type 2 Wallbox (Recommended)

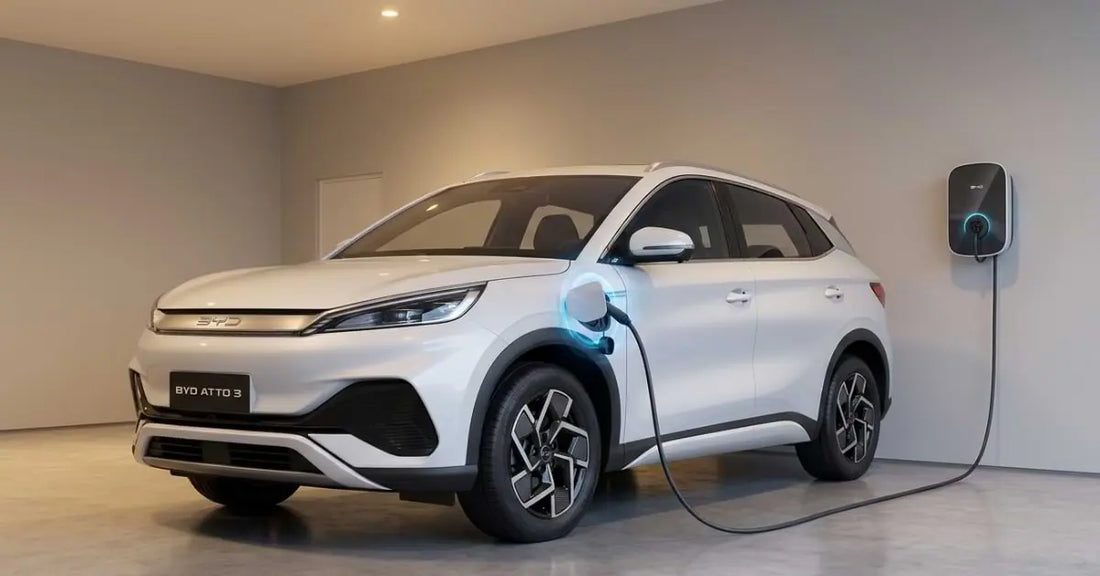

A dedicated 7 kW Type 2 wallbox installed by a qualified electrician is the best home setup for the Atto 3. It reduces full charge time to approximately 8 to 9 hours, which fits comfortably overnight.

• Connect the Type 2 connector to the car's AC port. The charging connection indicator on the instrument cluster lights up immediately.
• Set a scheduled charge via the infotainment screen to take advantage of off-peak electricity tariffs: Settings > Energy > Charging and Discharging > Smart Charging.
• Use the AC current limit function to cap the draw if your home wiring or circuit breaker requires it.

Public Charging: How the Atto 3 Works on Public Networks?

AC Public Chargers (Type 2)

The Atto 3 is compatible with any public Type 2 AC charger. These are found at shopping centres, workplaces, hotels, and car parks. Speeds match the car's 7 kW AC limit regardless of whether the charger offers more power.

DC Rapid Chargers (CCS2)

For longer journeys, the Atto 3 uses public CCS2 DC rapid chargers at up to 80 kW. Here is the process confirmed in the owner's manual:

1. 1Unlock the charge port door, then open the port door and port cap.
2. 2Plug the CCS2 connector into the DC port. The charging indicator on the instrument cluster lights up.
3. 3Authenticate at the charger via card tap or QR code.
4. 4The instrument cluster displays real-time charge rate and estimated completion time throughout the session.
5. 5To stop, end the session on the charger side first, then press the unlock button on the key twice within three seconds before removing the connector.

Smart Charging Features in the Atto 3

Beyond simply plugging in, the Atto 3 includes several software-driven charging controls. All are accessible via the infotainment touchscreen.

• Scheduled charging: Set a start time and end time so the car charges during cheaper off-peak tariff hours. Only applies to AC charging.
• AC current limit: Reduce the maximum draw (options: 6 A / 8 A / 10 A / 16 A / MAX) to protect older wiring or shared circuits. Factory default is MAX.
• Charge port immobiliser: Lock the connector in place to prevent tampering at public charging locations.
• V2L (Vehicle to Load): The Atto 3 includes V2L capability, allowing it to power external devices directly from the battery pack.
• Instant charging: Charging begins immediately when the connector is plugged in. Note that DC charging always starts instantly regardless of scheduled settings.

Common Charging Mistakes to Avoid

• xUsing the included Mode 2 cable every day. It delivers around 2.3 kW and is intended for emergency use, not routine charging.
• xForcing the charging connector out while the port is locked. Always unlock via the smart key or door handle microswitch before removing the connector to avoid port damage.
• xDisconnecting a DC connector without ending the session at the charger first. Always stop the charger before pulling the cable.
• xUsing an extension lead or multi-adapter with the Mode 2 cable. The owner's manual explicitly advises against this due to heat and safety risks.
• xClosing the charge port door while the port cap is still fully open. The manual warns this can damage the port door mechanism.
• xRunning the A/C on full during charging. The owner's manual recommends turning off the A/C during charging to maximise charging efficiency.

BYD Atto 3 Charging Cost: What to Expect

Charging cost depends on your electricity tariff and how you charge. Here are the approximate figures based on a 72.8 kWh battery (extended range):

• Home off-peak rate (~$0.15/kWh): Approximately $10.90 for a full charge.
• Home standard rate (~$0.28/kWh): Approximately $20.40 for a full charge.
• Public AC charger (~$0.45/kWh): Approximately $32.75 for a full charge.
• Public DC rapid charger (~$0.60/kWh): Approximately $43.70 for a full charge.

Using scheduled overnight charging on a home wallbox is almost always the most cost-effective option. Factoring in the Atto 3's power consumption of under 16 kWh per 100 km (WLTC), the running cost per kilometre is significantly lower than a petrol SUV of comparable size.

Frequently Asked Questions

Summary: Which Charger Does the BYD Atto 3 Use?

The BYD Atto 3 uses a Type 2 AC port for everyday charging and a CCS2 DC port for rapid charging on the road. Both connector types are the widely adopted standard across Australia, New Zealand, and Europe, meaning you will find compatible chargers at most public networks without needing an adapter.

For new owners, the single most impactful upgrade is installing a dedicated 7 kW Type 2 wallbox at home. It reduces overnight charge time from a potentially 30-hour process to a reliable 8 to 9 hours, and with scheduled off-peak charging enabled, it is also the most cost-effective way to keep the Atto 3 topped up for daily driving.

The included Mode 2 cable is worth keeping in the car for emergencies, but it is not designed to be your primary charging solution.
